Description

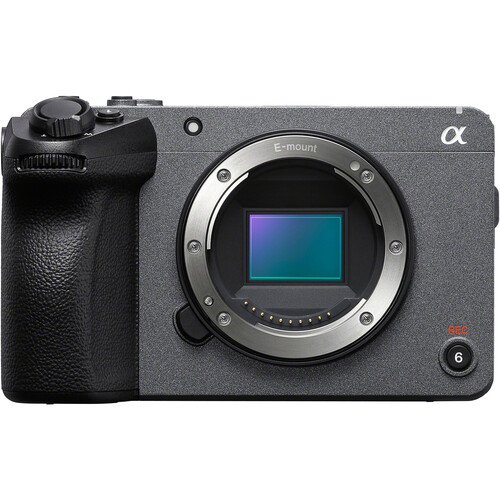

Leveraging the power of a newly developed APS-C sensor, the Sony FX30 provides everyday content creators and aspiring filmmakers with a powerful, yet accessible cinema camera with which to push their cinematic journey to new heights. It blends an imaging pipeline designed for cinematic capture with a comprehensive feature set and intuitive operation to create a complete system for all levels of filmmaking.
Key Specs
Lens Mount |
Sony E
|
Sensor Resolution |
Actual: 27 Megapixel
Effective: 26 Megapixel (6192 x 4128)
|
Image Sensor |
23.3 x 15.5 mm (APS-C) CMOS
|
Image Stabilization |
Sensor-Shift, 5-Axis
|
ISO Sensitivity Range |
100 to 32,000 (Extended: 50 to 102,400)
|
Internal Recording Modes |
XAVC HS 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps
XAVC Proxy
1920 x 1080
1280 x 720
XAVC S
UHD 4K (3840 x 2160) up to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps
1920 x 1080p up to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps
XAVC S-I 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 1/2/4/8/15/23.98/25/29.97/50/59.94/100/120 fps
1920 x 1080p from 1 to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps
|
External Recording Modes |
4:2:2 10-Bit via HDMI
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
ProResRAW 16-Bit via HDMI
4672 x 2628 at 23.98/25/29.97/50/59.94 fps
|
Media/Memory Card Slot |
Dual Slot: CFexpress Type A / SD
|
Video I/O |
1x HDMI 2.0 Output
|
Mobile App Compatible |
Yes: Android & iOS
App Name: Imaging Edge Mobile
Functionality: Adjust Settings, Remote Control
|
Battery Type |
Sony Z-Series
|
Imaging
Lens Mount |
Sony E
|
Lens Communication |
Yes, with Autofocus Support
|
Sensor Resolution |
Actual: 27 Megapixel
Effective: 26 Megapixel (6192 x 4128)
|
Image Sensor |
23.3 x 15.5 mm (APS-C) CMOS
|
Image Stabilization |
Sensor-Shift, 5-Axis
|
Built-In ND Filter |
No
|
Internal Filter Holder |
No
|
Capture Type |
Stills & Video
|
Exposure Control
Shutter Type |
Electronic Rolling Shutter
|
Shutter Speed |
1/8000 to 30 Seconds in Photo Mode
1/8000 to 1/4 Second in Video Mode
|
ISO Sensitivity Range |
100 to 32,000 (Extended: 50 to 102,400)
|
Advertised Dynamic Range |
14 Stops
|
Video Capture
Internal Recording Modes |
XAVC HS 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps
XAVC Proxy
1920 x 1080
1280 x 720
XAVC S
UHD 4K (3840 x 2160) up to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120 fps
1920 x 1080p up to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps
XAVC S-I 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 1/2/4/8/15/23.98/25/29.97/50/59.94/100/120 fps
1920 x 1080p from 1 to 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/120/200/240 fps
|
External Recording Modes |
4:2:2 10-Bit via HDMI
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
ProResRAW 16-Bit via HDMI
4672 x 2628 at 23.98/25/29.97/50/59.94 fps
|
Fast-/Slow-Motion Support |
Yes
|
Gamma Curve |
HDR-HLG, S Cinetone, Sony S-Log 3
|
Built-In Microphone |
Stereo
|
Audio Recording |
2-Channel 24-Bit LPCM Audio
4-Channel 24-Bit LPCM Audio
|
IP Streaming |
No
|
Interface
Media/Memory Card Slot |
Dual Slot: CFexpress Type A / SD
|
Video I/O |
1x HDMI 2.0 Output
|
Audio I/O |
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body
|
Power I/O |
1x USB-C Input
|
Other I/O |
1x Sony Multi/Micro-USB (Timecode)
1x USB-C (USB 3.2 / 3.1 Gen 2)
|
Wireless |
2.4 / 5 GHz Wi-Fi 5 (802.11ac) Control
Bluetooth 5.0
|
Mobile App Compatible |
Yes: Android & iOS
App Name: Imaging Edge Mobile
Functionality: Adjust Settings, Remote Control
|
Global Positioning (GPS, GLONASS, etc.) |
No
|
Focus
Autofocus Points |
Video
Phase Detection: 495
|
Autofocus Sensitivity |
-3 to +20 EV
|
Battery Type |
Sony Z-Series
|
Operating Conditions |
32 to 104°F / 0 to 40°C
|
Storage Conditions |
-4 to 140°F / -20 to 60°C
|
General
Shoe Mount |
1x Intelligent Hot Shoe
|
Tripod Mounting Thread |
1x 1/4″-20 Female (Bottom)
|
Accessory Mounting Thread |
5x 1/4″-20
|
Material of Construction |
Magnesium Alloy
|
Dimensions (W x H x D) |
5.1 x 3.1 x 3.3″ / 129.7 x 77.8 x 84.5 mm
|
Weight |
1.2 lb / 562 g (Body Only)
|
