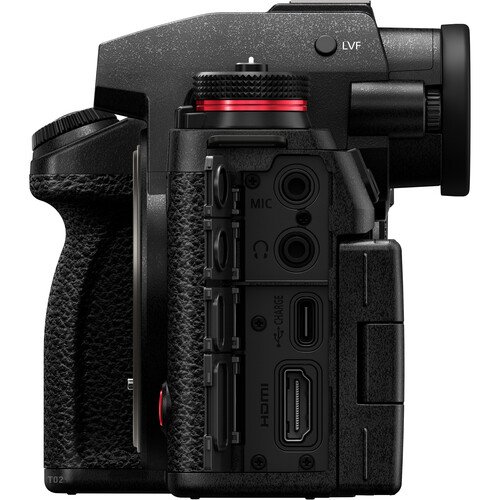

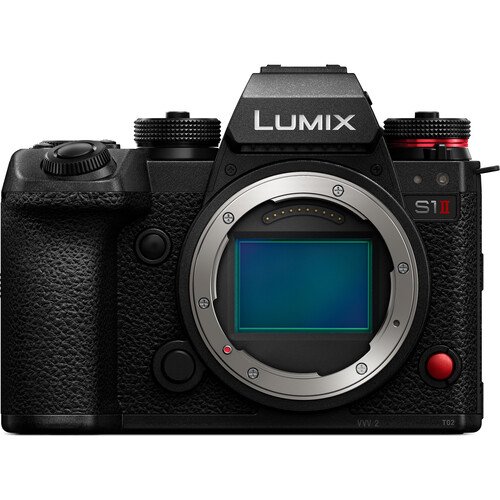

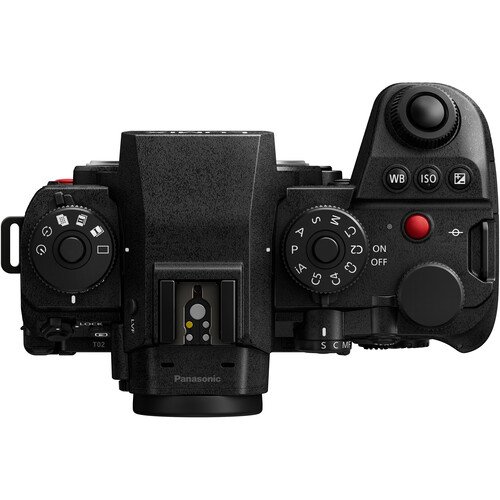

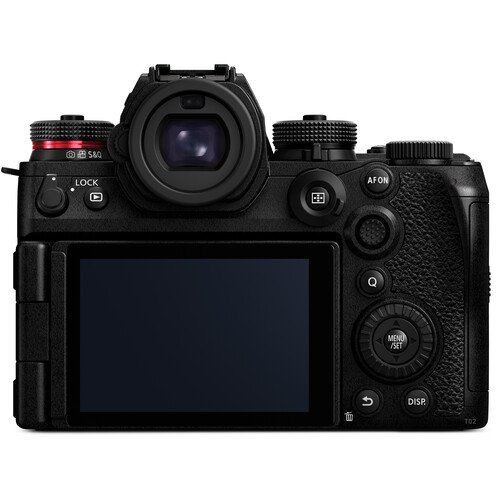

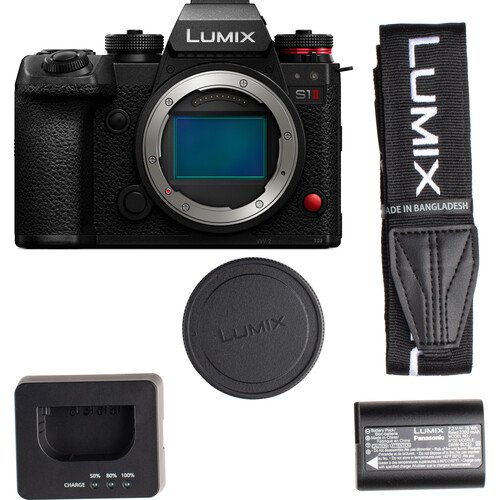

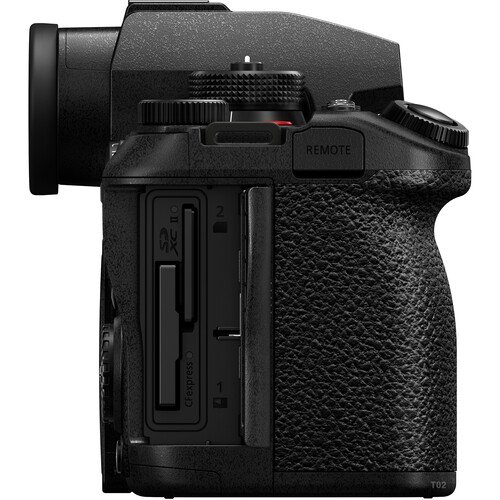

Panasonic Lumix S1 II Mirrorless Camera

L-Mount

Effective: 24.1 Megapixel
Actual: 26.8 Megapixel

35.8 x 23.8 mm (Full-Frame) CMOS

Crop Factor: 1x
*Additional Crop Occurs in Select Video Modes

Sensor-Shift, 5-Axis

No

Stills & Video

Mechanical Focal Plane Shutter and Electronic Rolling Shutter

Electronic Front Curtain Shutter
1/2000 to 60 Seconds
Mechanical Shutter
1/8000 to 60 Seconds

Bulb Mode (Up to 30 Minutes)

Dual Base: 100 / 800*
Native: 100 to 51,200 (50 to 204,800 Extended)
*Base ISO Is Dependent on Selected Color Space

Center-Weighted Average, Highlight Weighted, Multi-Zone, Multiple, Spot

Aperture Priority, Auto, Manual, Program, Shutter Priority

-3 to +5 EV (1/3 EV Steps)

0 to 18 EV

2500 to 10,000K
Presets: AWB, Cloudy, Color Temperature Filter, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4

Up to 70 fps at Maximum Resolution

2/10-Second Delay

1:1, 2:1, 3:2, 4:3, 16:9, 65:24

HEIF, JPEG, Raw

H.265 Long GOP 4:2:0 8/10-Bit
5952 x 3968 at 23.98/24.00/25/29.97 fps (200 Mb/s)
4800 x 3600 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps (300 Mb/s)
5088 x 3392 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps (300 Mb/s)
5888 x 3312 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps (300 Mb/s)
5760 x 3040 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps (300 Mb/s)
5952 x 2512 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps (300 Mb/s)
3328 x 2496 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/120 fps
4096 x 2160 at 23.98/25/29.97/47.95/50/59.94/96/120 fps (300 Mb/s)
3840 x 2160 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/120 fps (300 Mb/s)
4096 x 1728 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/96/100/120 fps (300 Mb/s)
1920 x 1080 at 23.98/24.00/25/29.97/47.95/48.00/59.94/100/120/200/240 fps (800 Mb/s)
ProRes RAW/ProRes RAW HQ
5760 x 3040 at 23.98/24.00/25/29.97 fps (4.2 Gb/s)
4800 x 3600 at 23.98/24.00/25/29.97 fps (1.9 Gb/s)
3328 x 2496 at 23.98/24.00/29.97/59.94 fps (1.8 Gb/s)
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps (1.9 Gb/s)
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
4096 x 1728 at 23.98/24.00/25/29.97/50/59.94 fps (4.2 Gb/s)
1920 x 1080 at 23.98/24.00/29.97/50/59.94/100/120 fps
H.264 ALL-Intra/H.264 Long GOP 4:2:2 10-Bit
4096 x 2160 at 23.98/29.97/47.95/59.94 fps (800 Mb/s)
3328 x 2496 at 23.98/29.97/47.95/59.94 fps (800 Mb/s)
3840 x 2160 at 23.98/29.97/47.95/59.94 fps (800 Mb/s)
4096 x 1728 at 23.98/29.97/47.95/59.94 fps (800 Mb/s)
1920 x 1080 at 23.98/29.97/47.95/59.94/120/240 fps (800 Mb/s)

4:2:0 10-Bit
4096 x 2160 at 120 fps
1920 x 1080 at 59.94 fps

Yes

No

RTMPS
1920 x 1080 at 59.94p (8.0 Mb/s)

Stereo

MOV: 2-Channel 24-Bit 48 kHz LPCM Audio

Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC

No

1x HDMI Output

1x 1/8″ / 3.5 mm TRS Stereo Headphone Output
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input

1x USB-C Input

1x USB-C (Data) Output (Shared with Power Input)

Wi-Fi 5 (802.11ac)

Yes: Android & iOS
App Name: Lumix Lab

GPS
*Via Connected Smartphone

Free-Angle Tilting 3″ Touchscreen LCD

1,840,000 Dot

Electronic (OLED)

5,760,000 Dot

21 mm

100%

Approx. 0.78x

-4 to +2

Auto and Manual Focus

Automatic, Continuous-Servo AF, Manual Focus

Photo, Video
Contrast Detection, Phase Detection: 779

No

Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction

1/250 Second

-3 to +3 EV (1/3 EV Steps)

TTL

No

1x Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Included)

1x Hot Shoe

1x 1/4″-20 Female (Bottom)

14 to 104°F / -10 to 40°C at 10 to 80% Humidity (Recommended)

5.29 x 4.03 x 3.61″ / 134.37 x 102.36 x 91.69 mm (Without Protrusions)

1.58 lb / 717 g (Body Only)
1.76 lb / 798 g (With Battery, Recording Media)

2.82 lb

9.1 x 6.5 x 6.4″
