Description

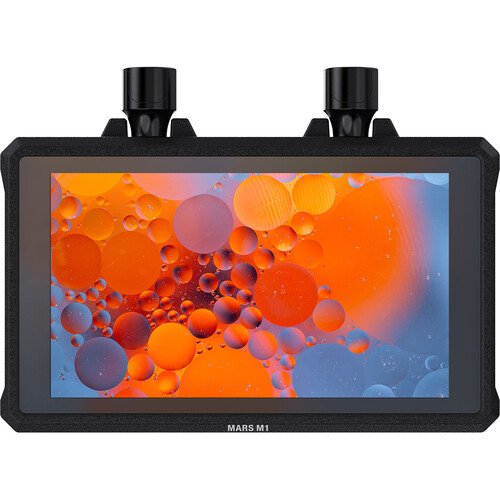

Transmit, receive, and monitor high-quality wireless video transmissions using this compact Mars M1 Enhanced 5.5″ Wireless Transceiver Monitor Kit from Hollyland. This kit includes Mars M1 Enhanced 5.5″ monitors that can be used either as a transmitter or a receiver. The Mars M1 Enhanced provides new features, including a record/playback review feature that can review up to 2 minutes of video for instant review, and it features a new low-profile capsule antenna design. As with the original M1, each Mars M1 Enhanced features a 5.5″ touchscreen display that provides a sharp resolution and 1000 cd/m² brightness for follow focus and director’s monitoring applications. Its built-in wireless transmitter and receiver allow you to send and receive video between M1 units as well as to/from the Mars 400S Pro, Mars 300 Pro, and Mars 4K wireless transmitters/receivers at a distance of up to 450′. You can also monitor video from the M1 Enhanced on smartphones and tablets running the companion HollyView app.
Key Specs
| Display Size |
5.5″ / 14.0 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x BNC (3G-SDI) Input
1x HDMI (Unspecified Signal) Loop Output
|
| Embedded Audio |
HDMI/SDI
|
| Latency |
No
|
| Video Format |
HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/30/29.97/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
|
| Battery Type |
1x L-Series
|
| Power Consumption |
16 W (Maximum)
|
| Mounting |
2x 1/4″-20 Female
|
Display
| Panel Type |
LCD
|
| Display Size |
5.5″ / 14.0 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Image Controls |
Focus Peaking, Waveform
|
Inputs / Outputs
| Antenna I/O |
2x RP-SMA Male
|
| Video I/O |

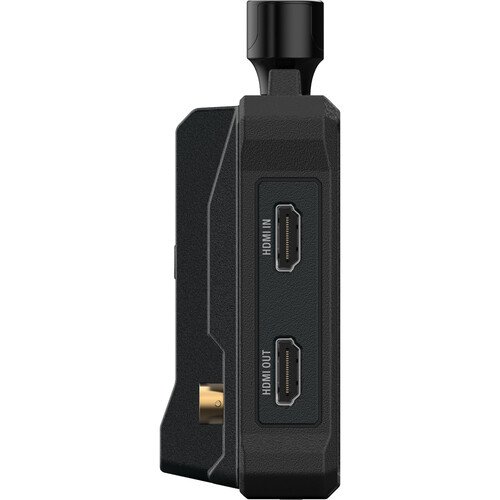

1x HDMI (Unspecified Signal) Input
1x BNC (3G-SDI) Input
1x HDMI (Unspecified Signal) Loop Output
|
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8″ / 3.5 mm Headphone Output
|
| Power I/O |
1x Barrel (16 VDC) Input
1x Barrel Output
|
| Other I/O |
1x USB-C (Firmware) Input
|
| Encryption |
No
|
Wireless
| Wireless Range |
450′ / 137.2 m (Line-of-Sight)
|
| Channel Bandwidth |
20 MHz
|
| Frequency Range |
US: 5.15 to 5.25 GHz
US: 5.25 to 5.35 GHz
US: 5.47 to 5.725 GHz
US: 5.725 to 5.85 GHz
|
| Latency |
No
|
| RF Power |
21 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes, Required: Android & iOS
App Name: HollyView
Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed
|
| Cellular Support |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/30/29.97/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
|
| Wireless Video Compression |
Compressed
|
| Timecode Support |
Yes
|
Power
| DC Input Power |
7 to 16 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
16 W (Maximum)
|
Mounting
| Mounting |
2x 1/4″-20 Female
|
Environmental
| Environmental Protection |
No
|
| Certifications |
FCC
|
| Operating Temperature |
14 to 140°F / -10 to 60°C
|
| Storage Temperature |
-40 to 140°F / -40 to 60°C
|
General
| Material of Construction |
Plastic
|
| Dimensions |
6 x 3.8 x 1.6″ / 152 x 96 x 40 mm (Excluding Antenna)
|
| Weight |
14.1 oz / 400 g, Excluding Antenna
|
