Description

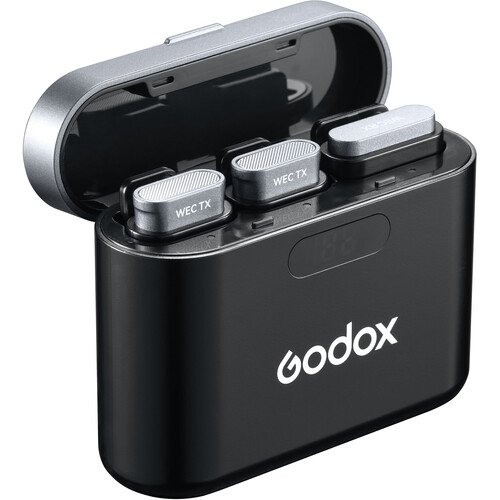

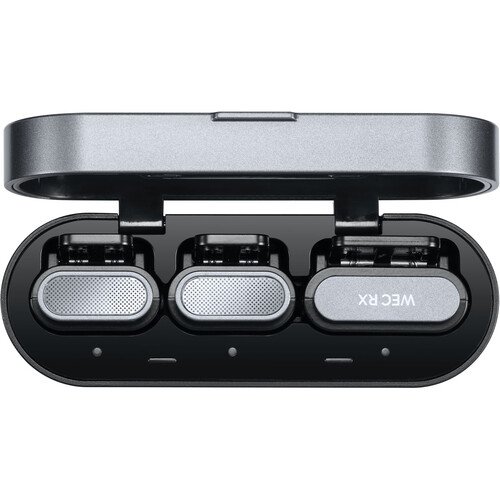

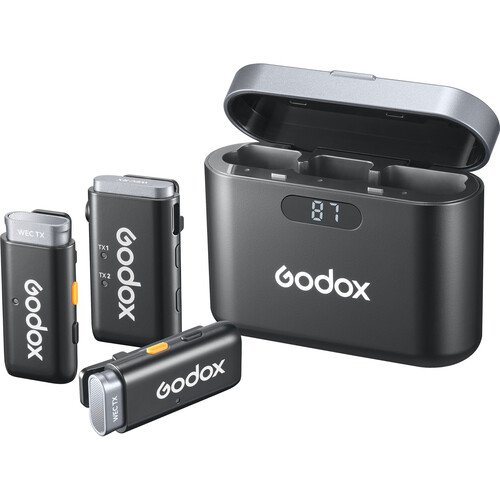

Record 2-person vlogs or interviews with the Godox WEC 2-Person Wireless Microphone System using its two clip-on transmitters with built-in microphones and dual-channel receiver with 3.5mm TRS connector. Attach your transmitters to your talent’s lapel and mount your receiver to the cold shoe mount of your camera with the integrated belt clip. Use the included 3.5mm TRS and 3.5mm TRS to TRRS audio cables to connect the receiver to your camera or mobile device of choice. Both the receiver and transmitters can communicate from up to 656′ away via 2.4 GHz frequency.
Key Specs
Wireless Technology |
Analog
|
Included Transmitters |
2x Clip-On with Microphone
|
Diversity |
Non-Diversity
|
Max Operating Range |
656.2′ / 200 m
|
Receiver Type |
Camera-Mount
|
Microphone Type |
Built-In (Transmitter)
|
Polar Pattern |
Omnidirectional
|
System
Wireless Technology |
Analog
|
Number of RF Channel Frequencies |
2
|
Included Transmitters |
2x Clip-On with Microphone
|
Diversity |
Non-Diversity
|
RF Channel Scanning |
Auto-Scan
|
Max Operating Range |
656.2′ / 200 m
|
Max Transmitters per Band |
2
|
Built-In Recorder |
No
|
Timecode Support |
No
|
Mobile App Compatible |
No
|
Sample Rate/Resolution |
48 kHz / 16-Bit
|
Dynamic Range |
86 dB
|
Receiver
Receiver Type |
Camera-Mount
|
Mounting Options |
Belt Clip (with Included Hardware)
|
Antenna |
Internal
|
Number of Audio Channels |
2
|
Audio I/O |
1x 1/8″ / 3.5 mm TRS Unbalanced Output
|
Gain Range |
-6 to +6 dB
|
Frequency Response |
20 Hz to 20 kHz
|
Network I/O |
No
|
USB/Lightning Connectivity |
USB-C Female (Charging)
|
USB Class-Compliant |
No, USB Charging/Power Only
|
Power Requirements |
Battery
|
Battery Type |
1x Built-In Rechargeable
|
Internal Battery Capacity |
200 mAh
|
Battery Charging Time |
2 Hours
|
Approx. Battery Life |
8 Hours
|
DC Input Power |
5 VDC at 200mA
|
Display & Indicators |
LED
|
Operating Temperature |
14 to 122°F / -10 to 50°C
|
Dimensions |
1.9 x 1.1 x 0.6″ / 48 x 28 x 15 mm
|
Weight |
0.6 oz / 16 g
|
Transmitter
Transmitter Type |
Clip-On with Microphone
|
RF Output Power |
Not Specified by Manufacturer
|
Audio I/O |
No
|
Auto-Level Control |
Yes
|
Gain Range |
-6 +6 dB
|
Frequency Response |
20 Hz to 20 kHz
|
Sync Method |
2.4 GHz QPSK
|
Antenna |
Internal
|
Power Requirements |
Battery
|
Battery Type |
1x Built-In Rechargeable
|
Internal Battery Capacity |
140 mAh
|
Battery Charging Time |
2 Hours
|
Approx. Battery Life |
8 Hours
|
USB/Lightning I/O |
USB-C (Charging)
|
Display & Indicators |
LED
|
Operating Temperature |
14 to 122°F / -10 to 50°C
|
Dimensions |
1.9 x 0.9 x 0.6″ / 48 x 22 x 16 mm
|
Weight |
0.4 oz / 12 g
|
Microphone
Microphone Type |
Built-In (Transmitter)
|
Sound Field |
Mono
|
Polar Pattern |
Omnidirectional
|
Frequency Range |
20 Hz to 20 kHz
|
Maximum SPL |
110 dB SPL
|
Dynamic Range |
86 dB
|
Operating Temperature |
14 to 122°F / -10 to 50°C
|
Charging Case
Additional Runtime with Charging Case |
24 Hours
|
Recharge Time |
2 Hours
|
Battery Chemistry |
Lithium-Ion
|
Capacity |
1400 mAh
|
Charging Interface |
USB-C
|
DC Input Power |
5 VDC at 1.3 A
|
Dimensions |
3.3 x 2.5 x 1.2″ / 85 x 63 x 30 mm
|
Weight |
3 oz / 84 g
|
