Description

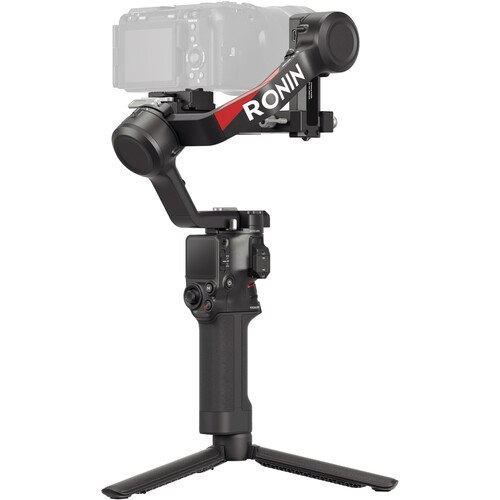

Enhanced operation efficiency, native vertical shooting, and an expanded accessory ecosystem make the DJI RS 4 a powerful tool for the mirrorless camera shooter. The gimbal only weighs around 2.4 lb and sports a load capacity of 6.6 lb capable of supporting your compact camera build. Teflon-coated axes reduce friction for a smoother balancing and operating experience. Other intuitive features include a fine-tuning knob, auto-locking OLED screen, and RSA communication port for use with expanded accessories.
Key Specs
Gimbal Design |
Single Handgrip (Slanted)
|
Load Capacity |
6.6 lb / 3 kg
|
Number of Axes |
3: Pitch (Tilt), Roll, Yaw (Pan)
|
Wireless Frequency |
2.4 GHz
|
Wireless Protocol |
Bluetooth 5.0
|
Mobile App Compatible |
Yes: Android & iOS
App Name: Ronin App
|
Mounting |
1 x 1/4″-20 Female
2 x NATO Rail
|
Weight |
2.36 lb / 1.07 kg
|
Gimbal
Load Capacity |
6.6 lb / 3 kg
|
Number of Axes |
3: Pitch (Tilt), Roll, Yaw (Pan)
|
Rotation Range |
Mechanical Range
Yaw (Pan): 360°
Pitch (Tilt): -112 to 214°
Roll: -95 to 240°
|
Follow Speed |
Pan/Tilt/Roll: 360°/s
|
Compatibility
Camera Control |
On Compatible Models
|
Connectivity
Inputs/Outputs |
3x USB-C (Control / Video)
1x USB-C (Power)
|
Wireless Frequency |
2.4 GHz
|
Wireless Protocol |
Bluetooth 5.0
|
Mobile App Compatible |
Yes: Android & iOS
App Name: Ronin App
|
Battery
Battery Type |
1x Built-In
|
Battery Capacity |
3000 mAh / 21 Wh
|
Battery Runtime |
12 Hours
|
Battery Charging Time |
2.5 Hours
|
Battery Chemistry |
Lithium-Ion Polymer (LiPo)
|
Voltage |
7.2 VDC
|
Power
Operating Voltage |
7.2 VDC
|
General
Display Type |
Fixed Touchscreen OLED
|
Operating Conditions |
-4 to 113°F / -20 to 45°C
|
Materials |
Aluminum Alloy
|
Mounting |
1 x 1/4″-20 Female
2 x NATO Rail
|
Dimensions |
10 x 9.6 x 3″ / 255 x 245 x 75 mm (Folded)
14.6 x 7.5 x 7.4″ / 370 x 191 x 189 mm
|
Weight |
2.36 lb / 1.07 kg
|
